Post by francis on Jun 3, 2021 10:42:25 GMT
A while back a member of this forum asked me to build him a 12 string based around a J185 body shape (like Leo's). Timber selection was quickly decided and since then there has been the ping-pong game of emails and messages back-n-forth working out some of the details. A few mock-ups have been produced and we have finally a finished visual design. I'm still working on the internal stuff that doesn't usually get seen but I'm sure as the build progresses those details will be shown.
The final mock-up:
The soundboard is Sitka spruce, back and sides are figured walnut. The neck is mahogany with central laminations. Tuners are Shertler's and it's to have K&K's fitted.
Purflings and rosette are based around a crow's foot pattern with additional coloured lines. Bindings are lacewood.
I'vve started work on the rosette and the front halves have been joined. TBC...
|
|
|
Post by earthbalm on Jun 3, 2021 14:47:31 GMT
Thanks for posting francis . I'm looking forward to seeing how the build develops.
|
|
|
Post by fatfingerjohn on Jun 3, 2021 15:07:35 GMT
Really look forward to seeing this develop and possibly eventually see the real thing if we get the chance. I like the Shertler tuners, very well made and responsive. Will be nice to se the walnut too.
|
|
garynava
Luthier / Guitar Maker
Posts: 454
My main instrument is: Stanley No.5
|
Post by garynava on Jun 3, 2021 16:01:03 GMT
I always think that if you're going to make a 12 strings, make big one! Always had a soft spot of that Gibson J shape. Look forward to seeing the progress. Cheers Gary
|
|
|
Post by earthbalm on Jun 3, 2021 17:24:40 GMT
I'm looking forward to seeing the figured walnut too!
|
|
|
Post by scorpiodog on Jun 3, 2021 20:25:36 GMT
Looks great, Francis. I wonder who that could be for.
|
|
francis
C.O.G.
Posts: 2,355
My main instrument is: Whatever I'm building...
|
Post by francis on Jun 4, 2021 8:32:44 GMT
Assembling the centre back strip Black and white veneers are 0.3mm and the red is 0.6. These were glued up overnight and two strips cut off this morning and clamped either side of a crows foot purfling strip. Superglue used between each clamp then the clamps shifted and more SG added...
|
|
francis
C.O.G.
Posts: 2,355
My main instrument is: Whatever I'm building...
|
Post by francis on Jun 4, 2021 10:25:42 GMT
Back strip and figured walnut back. Back plate still to be thicknessed. The inside face will be routed and a reinforcement strip added over the decrative back strip before thicknessing.
|
|
leoroberts
C.O.G.
Posts: 24,337
My main instrument is: probably needing new strings
|
Post by leoroberts on Jun 4, 2021 11:41:43 GMT
Looks great, Francis. I wonder who that could be for. I think we should be told, scorpiodog, don't you?
|
|
francis
C.O.G.
Posts: 2,355
My main instrument is: Whatever I'm building...
|
Post by francis on Jun 4, 2021 14:15:25 GMT

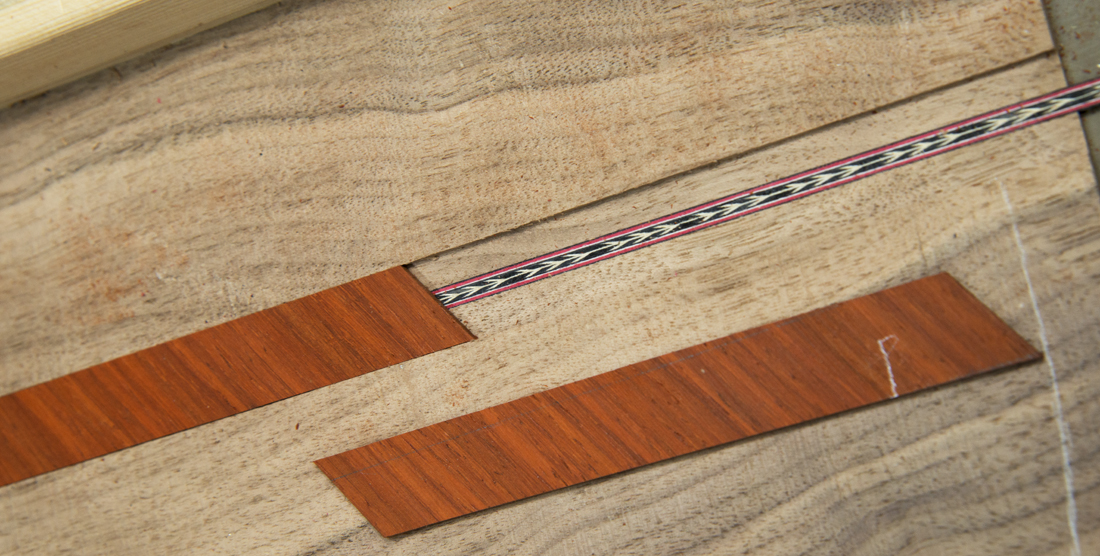

Padauk centre reinforcement.
|
|
francis
C.O.G.
Posts: 2,355
My main instrument is: Whatever I'm building...
|
Post by francis on Jun 4, 2021 14:20:16 GMT
Looks great, Francis. I wonder who that could be for. I think we should be told, scorpiodog , don't you? Remember Leo the guy is shy - always stands at the back, doesn't drink (much)... He's a folk singer
|
|
|
Post by scorpiodog on Jun 4, 2021 14:44:25 GMT
He's been described as many worse things than that, I can assure you francis. Often by me.
|
|
|
Post by earthbalm on Jun 4, 2021 17:19:41 GMT
Loving the wood combination francis. I can imagine how it'll look under a finish!
|
|
francis
C.O.G.
Posts: 2,355
My main instrument is: Whatever I'm building...
|
Post by francis on Jun 10, 2021 11:17:07 GMT

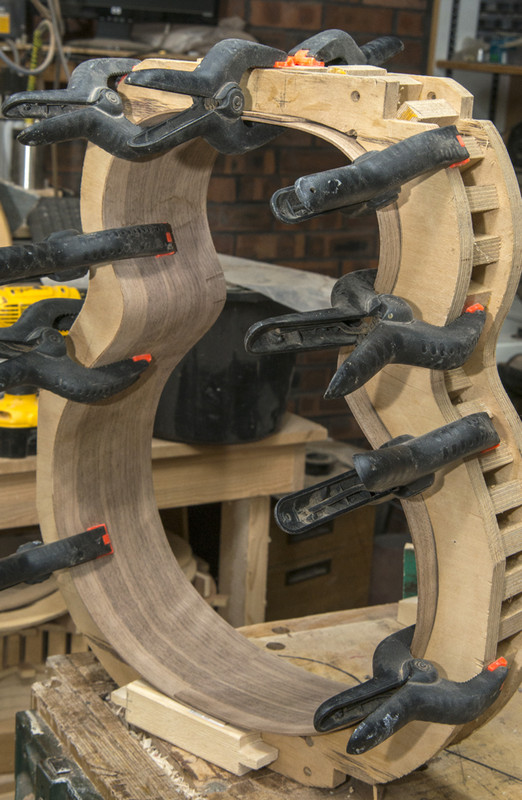

Dusted off the Fox bender and completed the side bending ops last night. I've clamped the sides in their mould and will leave them to completely dry out before trimming to length.
|
|
francis
C.O.G.
Posts: 2,355
My main instrument is: Whatever I'm building...
|
Post by francis on Jun 11, 2021 14:23:12 GMT
|
|
