.. obviously the above post was made by francis, not me. Long story, with which I will not bore you! Keith
|
|
|
Post by jonnymosco on Jun 20, 2021 7:42:42 GMT
Lovely rosette Francis, Stefan Sobell uses the same purfling.
Jonny
|
|
francis
C.O.G.
Posts: 2,384
My main instrument is: Whatever I'm building...
|
Post by francis on Jun 24, 2021 14:12:12 GMT

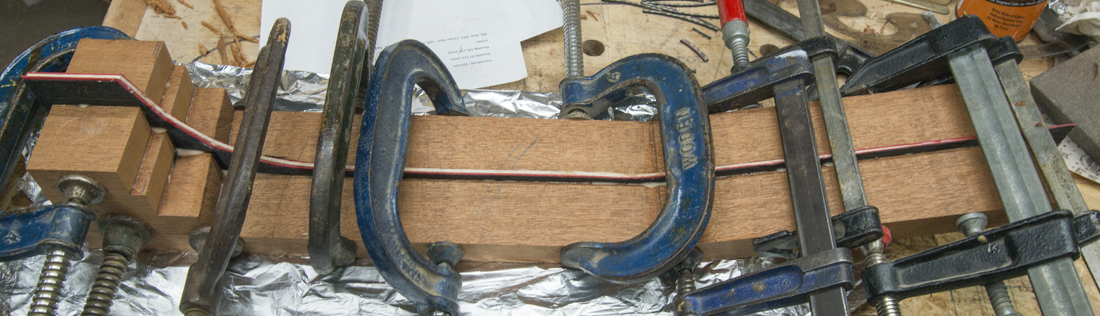

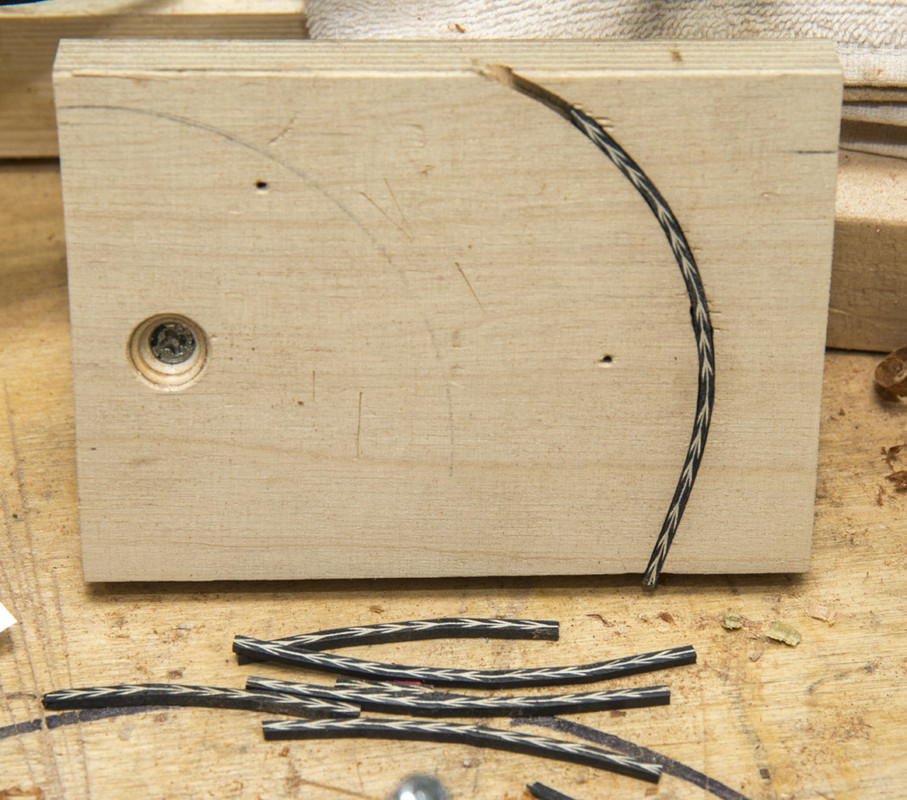

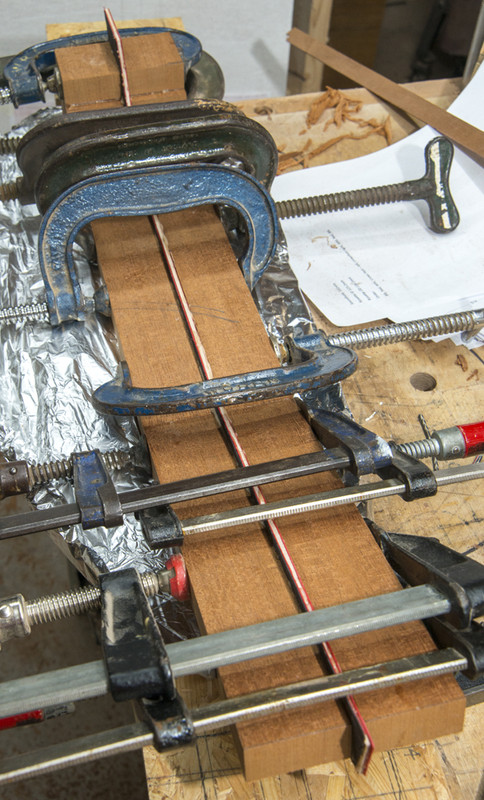

I had a few problems (breakages) with the crowsfoot rings in the rosette so I made myself a little bender which is simply a channel fractionally wider than the crowsfoot strips. It has a straight infeed going into a progressively tighter bend - just under the required bend for the rosette. You could hear the strip cracking (but a uniform cracking) as it was fed through. The pieces in the photo are offcuts and test pieces. I've now glued up the neck and added the neck laminations
|
|
|
Post by earthbalm on Jun 24, 2021 14:56:59 GMT
Thanks for posting Francis, were the sides in the Fox bender when I visited the sides for this guitar? I love the look of laminate necks.
|
|
francis
C.O.G.
Posts: 2,384
My main instrument is: Whatever I'm building...
|
Post by francis on Jun 24, 2021 15:15:54 GMT
Thanks for posting Francis, were the sides in the Fox bender when I visited the sides for this guitar? I love the look of laminate necks. No. The sides were out of the Fox style bender. They've had their laminated linings fitted and they are currently sitting in the body mould waiting for me to do some work on the front and back plates to seal the body.
Next job on the neck is to cut the channels for the truss rod and the graphite stiffners. I can do the J45 neck channels then as well.
|
|
francis
C.O.G.
Posts: 2,384
My main instrument is: Whatever I'm building...
|
Post by francis on Jun 25, 2021 11:43:05 GMT

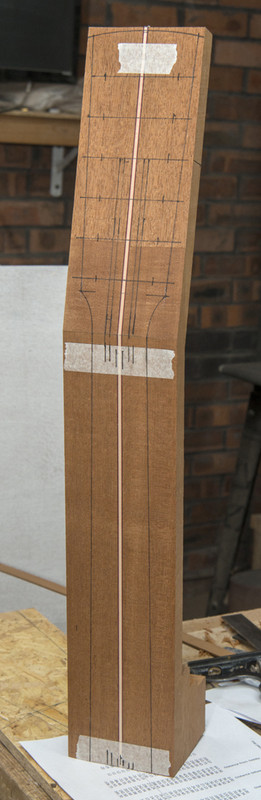

Cleaned up the top faces of both the neck and headstock to layout the positions of the various 'bits' that go to make up a neck.
|
|
francis
C.O.G.
Posts: 2,384
My main instrument is: Whatever I'm building...
|
Post by francis on Jun 29, 2021 21:00:00 GMT

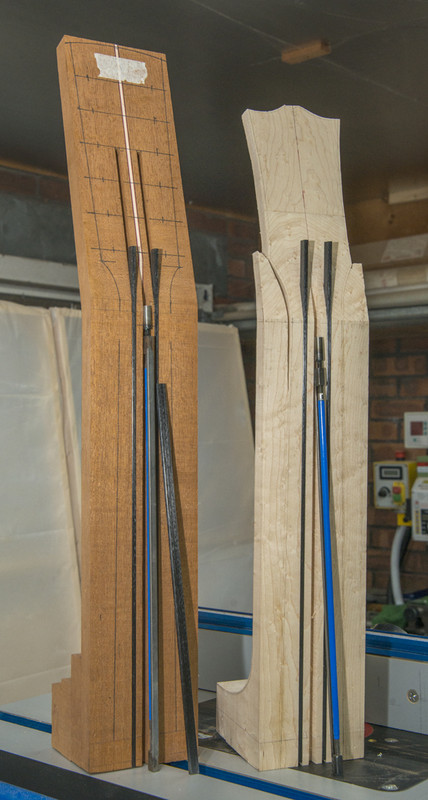

Two necks now with slots for truss rods and graphite stiffeners. Nobody will notice the deliberate mistake (probably heard the words though)...
|
|
|
Post by earthbalm on Jun 30, 2021 14:59:16 GMT
Certainly not me francis. Will you be letting us in on the secret?
|
|
francis
C.O.G.
Posts: 2,384
My main instrument is: Whatever I'm building...
|
Post by francis on Jun 30, 2021 15:22:58 GMT
Certainly not me francis . Will you be letting us in on the secret? OK. I marked out and cut the J45 neck to shape before I'd routed the slots for the truss rod and graphite stiffeners. Meaning I had to glue the offcuts back on before I could rout the said channels... Now I have to cut the 'offcuts' off again
|
|
|
Post by scorpiodog on Jun 30, 2021 15:29:06 GMT
Well said earthbalm. I couldn't see it either, but was afraid to admit my ignorance. Doesn't seem like much of a mistake to me. But then I don't pretend to have anything like your skills, francis. I'd be proud enough if I managed to plane something flat or cut it straight!
|
|
leoroberts
C.O.G.
Posts: 24,454
My main instrument is: probably needing new strings
|
Post by leoroberts on Jun 30, 2021 17:10:02 GMT
OK. I marked out and cut the J45 neck to shape before I'd routed the slots for the truss rod and graphite stiffeners. Meaning I had to glue the offcuts back on before I could rout the said channels... Now I have to cut the 'offcuts' off again Schoolboy error. You'd never catch ME doing that. And we all know why you'd never catch me doing it...
|
|
|
Post by earthbalm on Jun 30, 2021 19:27:18 GMT
I think I can see the glue lines now you've explained it but it could be just my imagination. As always, looking forward to the next update francis.
|
|
francis
C.O.G.
Posts: 2,384
My main instrument is: Whatever I'm building...
|
Post by francis on Jul 1, 2021 15:46:14 GMT
Spruce back bracing. Can't think of a lot more to say about this...
|
|
|
Post by earthbalm on Jul 1, 2021 17:48:37 GMT
How about, "That's lovely looking walnut"? Everything is clean and tidy, Milsom style. Thanks for posting francis.
|
|
