colins
Luthier / Guitar Maker
Posts: 2,397
|
Post by colins on Feb 22, 2019 16:34:35 GMT

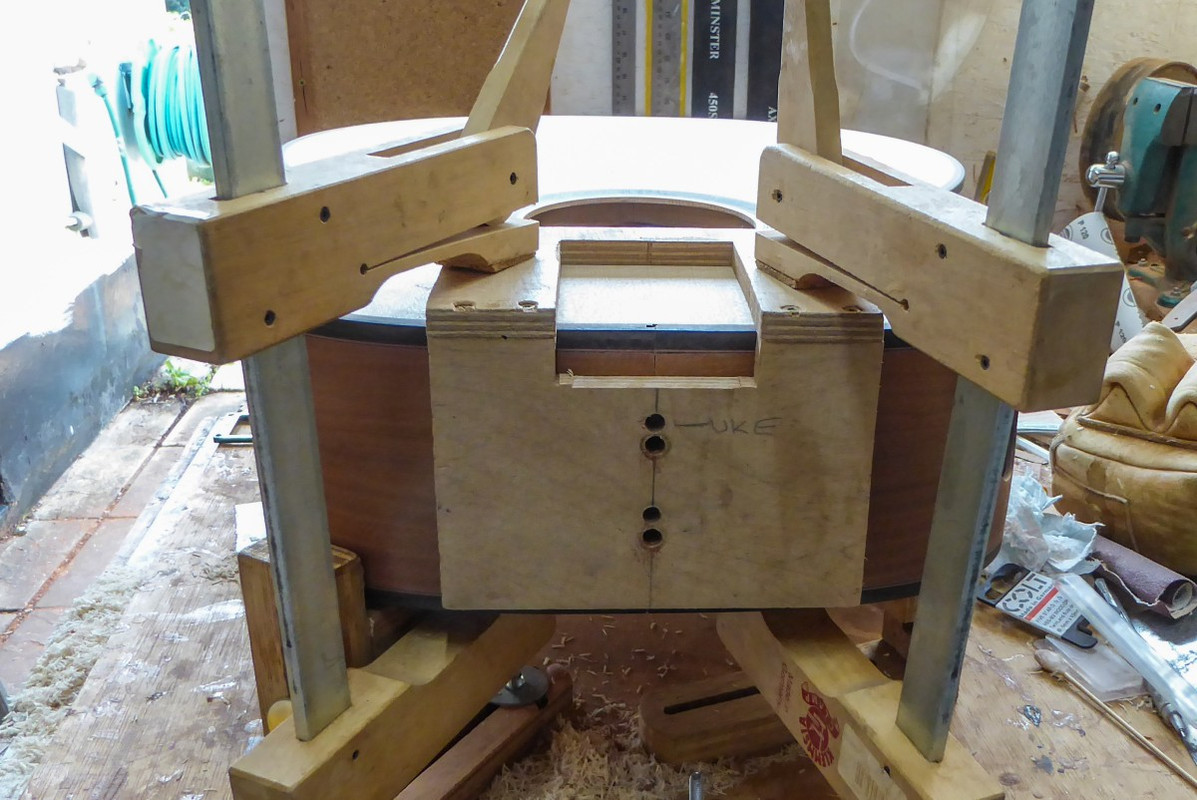

Body and neck are now ready to be mated, so I take out my most complex jig, and accurately clamp it to the guitar.
This allows me to drill the holes for the bolts.

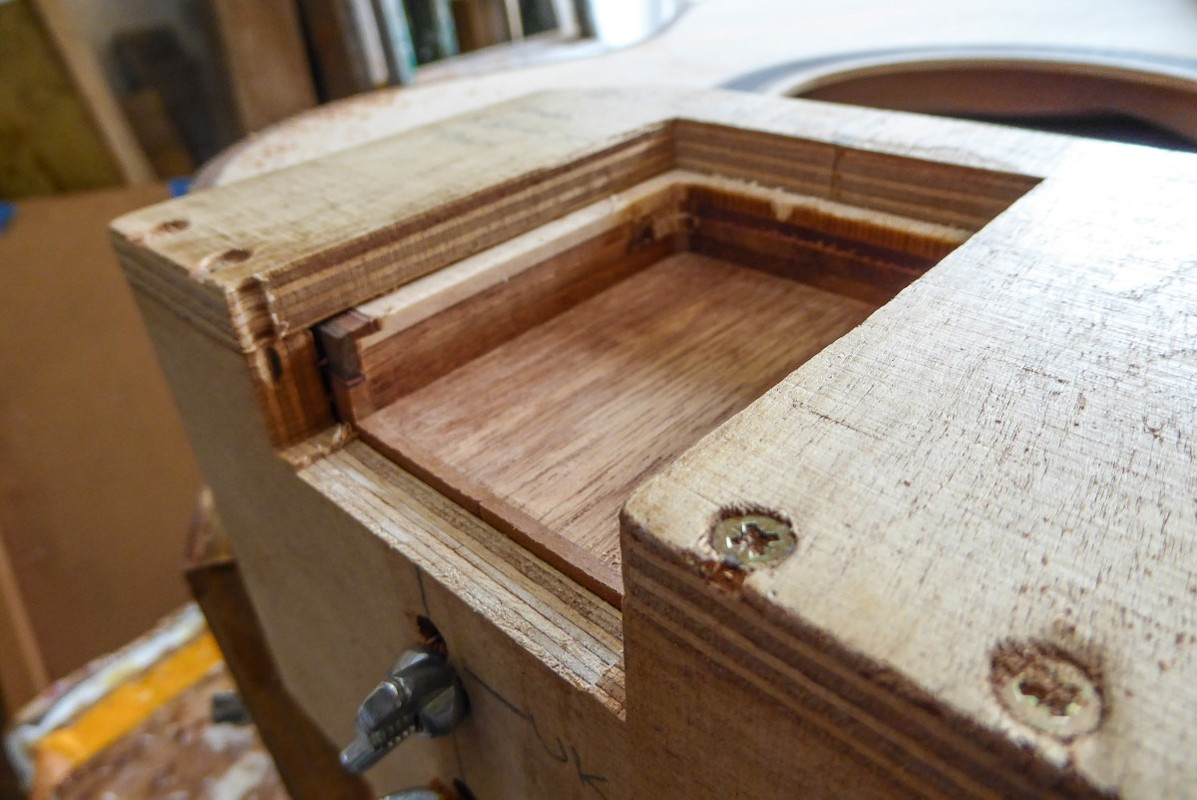

Next using a router and a guide I rout the pocket in stages until I get the correct depth.
Next I put two transfer markers into the holes and press the neck in place

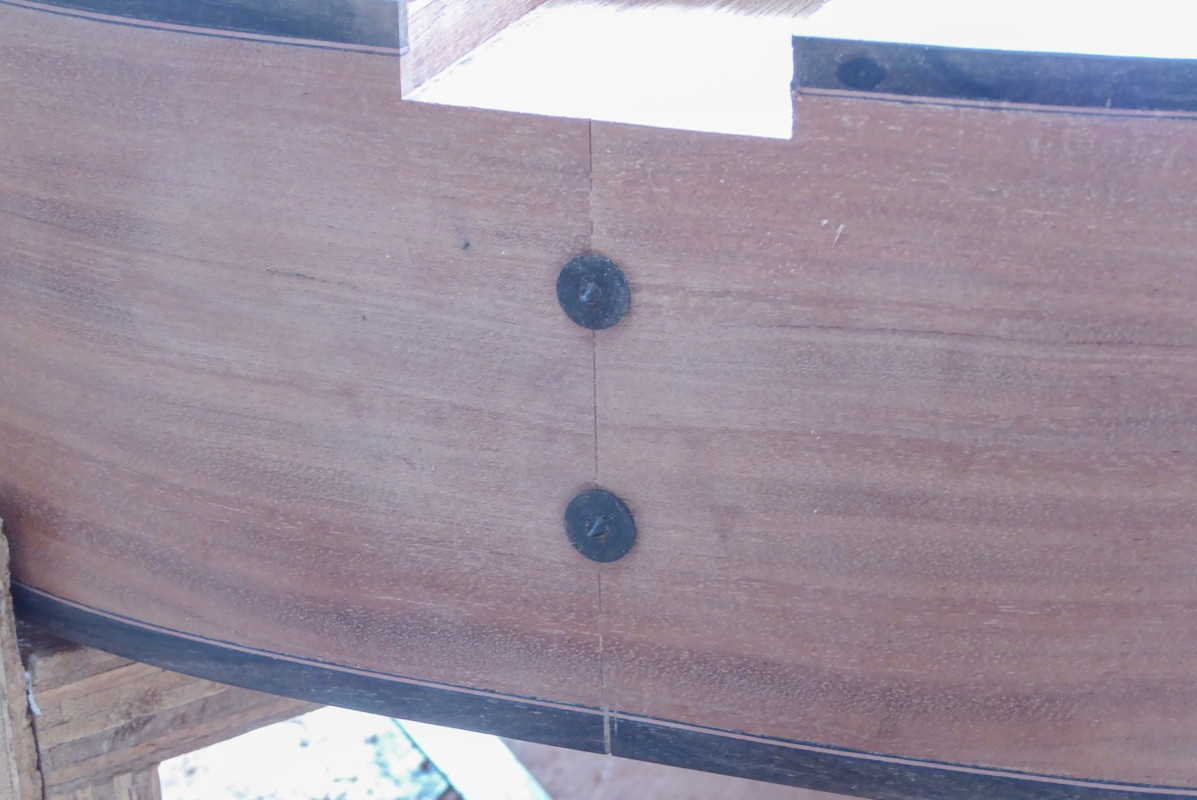

I can then drill the neck heel and install the bushes, the are screwed and glued into place.

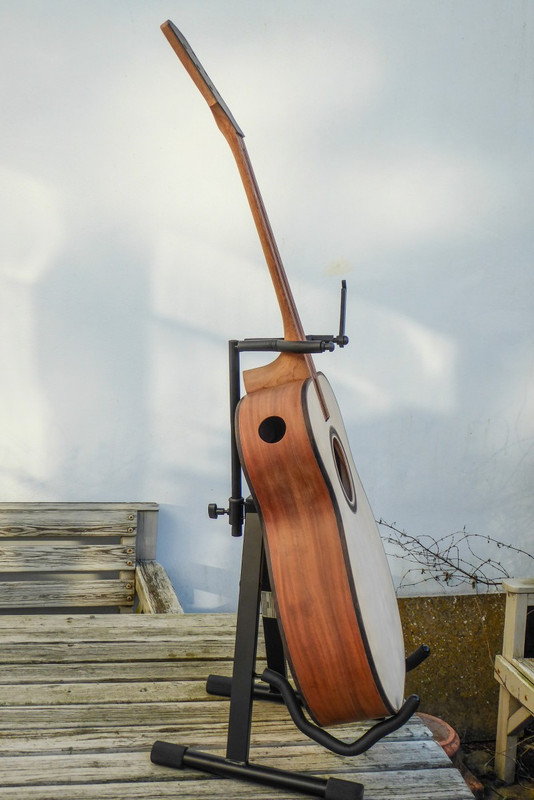

The neck can then be attached to the body and the heel cheeks flossed to fit. This will be finessed once the fingerboard is attached.
Colin
|
|
leoroberts
C.O.G.
Posts: 26,148
My main instrument is: probably needing new strings
|
Post by leoroberts on Feb 22, 2019 20:00:24 GMT
She’s looking gorgeous, colins. |
|
colins
Luthier / Guitar Maker
Posts: 2,397
|
Post by colins on Feb 27, 2019 12:59:33 GMT

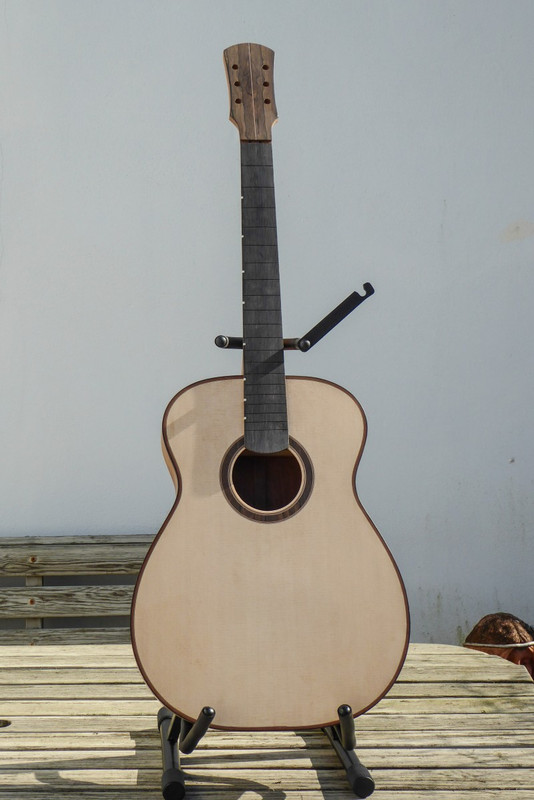

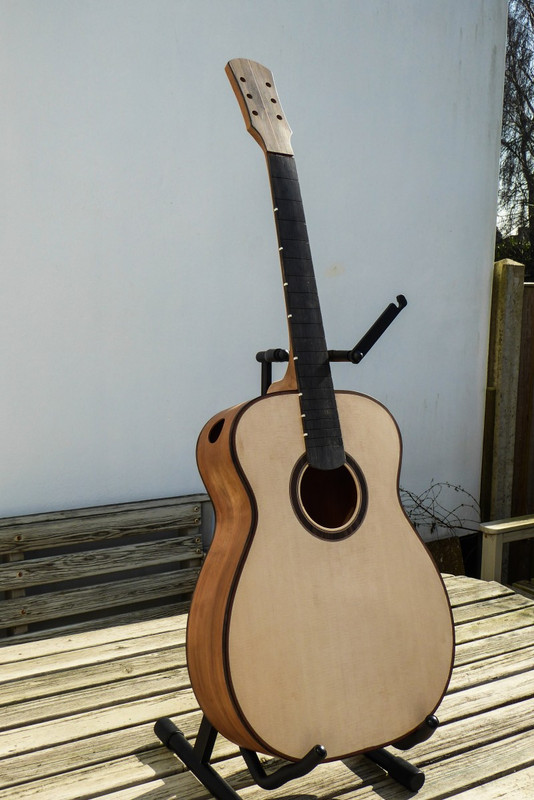

Well the OM has now got its fingerboard. I prepared a bog oak fingerboard radiused, slots cut and the bone markers set in, I hope at the correct frets. Time to nail it on.  I realised I only had the three nails and I need them for the 336 so I glued it on with fish glue. The neck was given its final shaping to my preferred profile and and it'll soon be time to put the frets on.    Colin |
|
David Hutton
Cheerfully Optimistic
Posts: 1,191
My main instrument is: The Colin Symonds All English Guitar
Mini-Profile Background: {"image":"","color":"45423e"}
Mini-Profile Name Color: f9f0f0
Mini-Profile Text Color: d0bebe
|
Post by David Hutton on Feb 27, 2019 13:47:23 GMT
That's not looking too shabby Colin!
|
|
|
|
Post by andyhowell on Mar 1, 2019 9:08:26 GMT
No slots? An improvement I say :-)
|
|
colins
Luthier / Guitar Maker
Posts: 2,397
|
Post by colins on Mar 1, 2019 9:49:45 GMT
No slots? An improvement I say :-) Yep , no slots, I had a spare set of flathead tuners so went that way. Of course you are wrong, slots are far better.  |
|
Phil Taylor
C.O.G.
Posts: 4,516
Mini-Profile Name Color: 680908
Mini-Profile Text Color: 121311
|
Post by Phil Taylor on Mar 1, 2019 11:14:02 GMT
You just simply can't beat the classic OM shape (or something very close to it) in my opinion. Whilst I do like some of the more modern pointy curvy shapes such as the cutaway Taran for example whenever I see a guitar like this it shoots right to the heart of my sensibilities. The flat headstock is very nice too  Phil |
|
colins
Luthier / Guitar Maker
Posts: 2,397
|
Post by colins on Mar 1, 2019 15:08:43 GMT
Phil, this is the first guitar shape I ever built, when I made it specifically for DADGad, I had to make it as I had sold my Martin OM to Martin.
Colin
|
|
colins
Luthier / Guitar Maker
Posts: 2,397
|
Post by colins on Mar 1, 2019 15:11:54 GMT

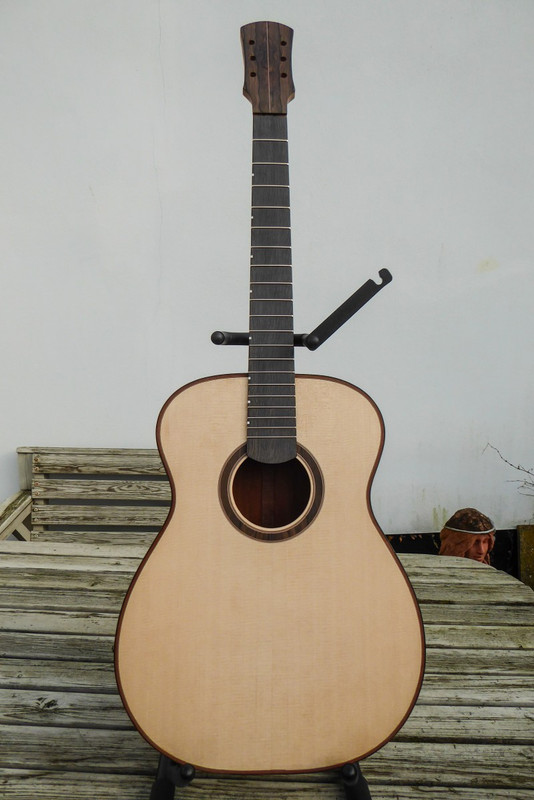

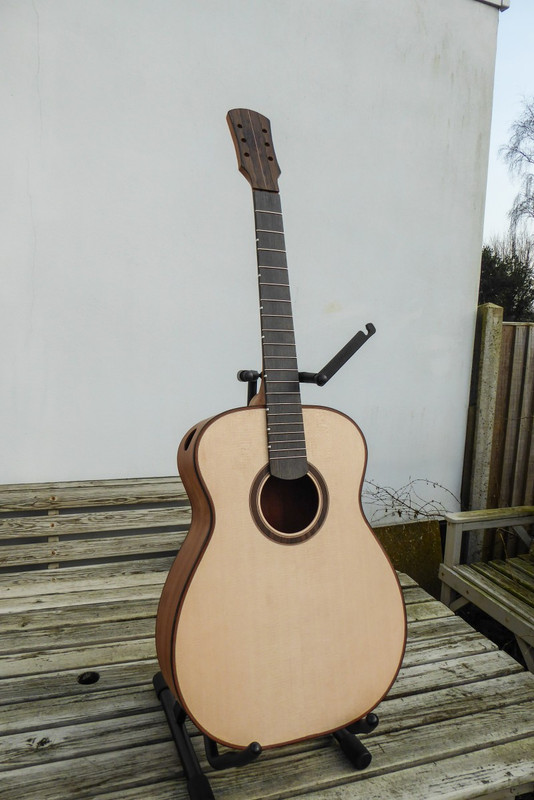

Frets installed and ends dressed.   Colin |
|
|
|
Post by andy3sheds on Mar 31, 2019 0:47:32 GMT
A very handsome looking guitar and the fretboard markers are a nice touch both elegant and understated
|
|
Martin
Administrator
Posts: 11,994
Mini-Profile Background: {"image":"http://mandocello.org/lytebox/images/adirondack.jpg","color":""}
Mini-Profile Name Color: 0a530b
Mini-Profile Text Color: 4f3517
|
Post by Martin on Mar 31, 2019 19:22:11 GMT
Looking fabulous Colin. Can’t wait for the April Fools Day update  |
|
|
|
Post by andy3sheds on Mar 31, 2019 21:51:24 GMT
In the last pic it seems someone has tried to disguise themselves as a tortoise!
|
|
colins
Luthier / Guitar Maker
Posts: 2,397
|
Post by colins on Apr 1, 2019 12:56:45 GMT
Looking fabulous Colin. Can’t wait for the April Fools Day update Your wish is my command.

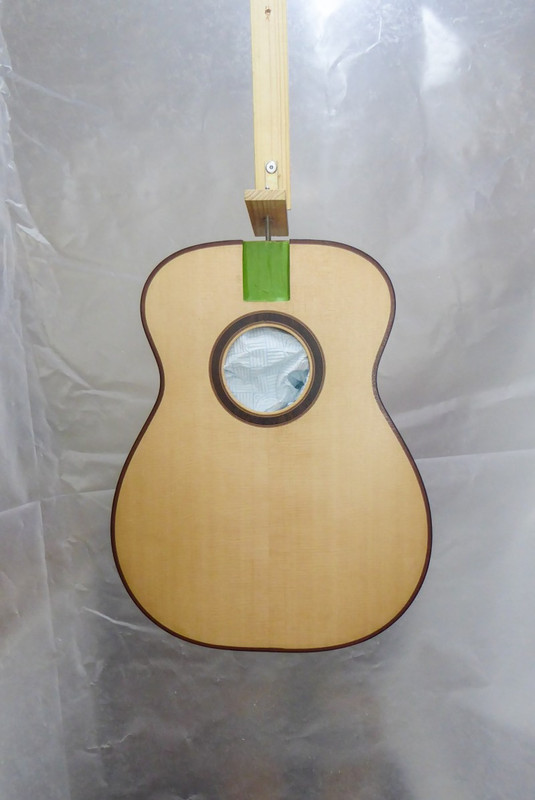

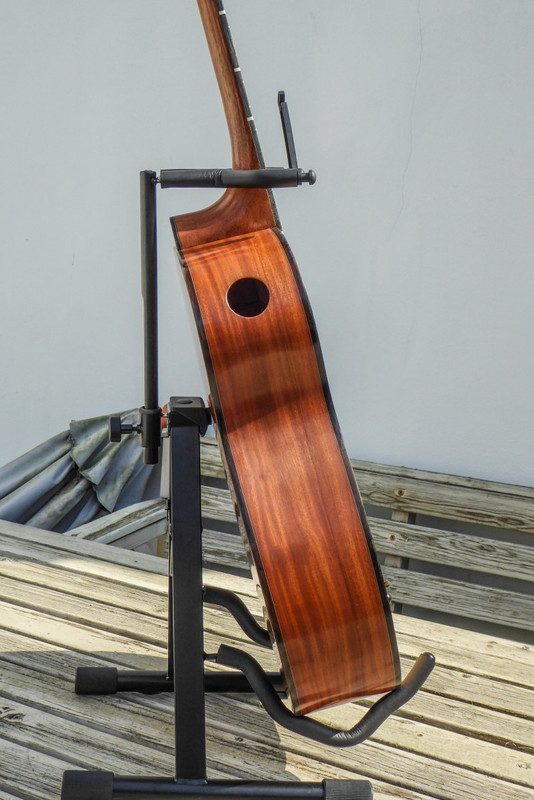

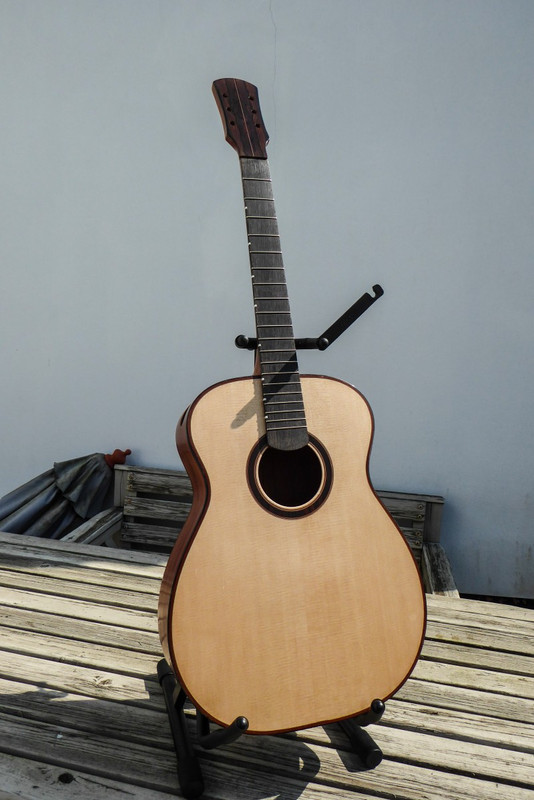

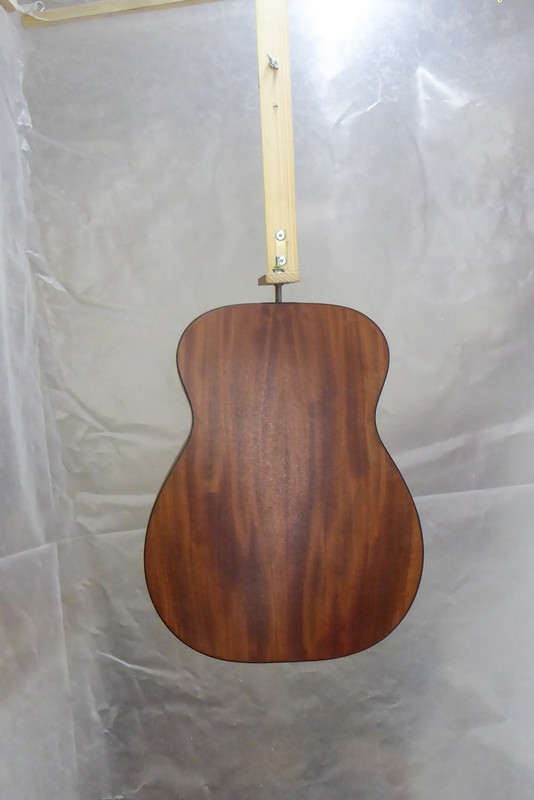

I have applied the finish to the OM, for the two guitars I have under construction I decided to apply a different finish from my normal, after getting a lot of advice from Dave I went with a pre-cat lacquer. I put together a small spray booth and after a bit of practice on some scrap I got out the HVLP sprayer and went at it.
After spraying and sanding back I think I have achieved a nice old furniture sheen, which is what I was aiming to get.
Next job is to make the Bog oak bridge.
Colin |
|
|
|
Post by Vinny on Apr 1, 2019 13:44:13 GMT
That finish really enhances the grain.just right amount of "shiney-ness"
Vinny
|
|
foz
Strummer
Posts: 20
|
Post by foz on Apr 1, 2019 13:48:16 GMT
Hi Colin, the spray finish looks spot on. I also keep admiring the back of the headstock, ie the way it transitions to the neck, something similar to what i would like to achieve on number 2.
BTW, could i ask, when you come to take the finish off to apply the bridge, would you be able to show how you approach this please? I am curious to how this is done.
Many thanks
Andy
|
|
